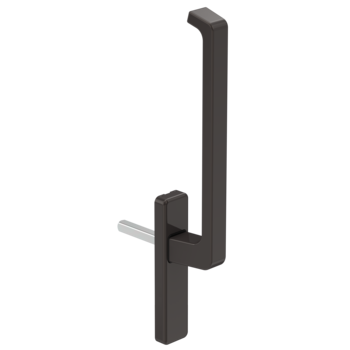

6-24613-00-0-5 | Bag handle inside 953/956, UC 5
Part No.6-24613-00-0-5
EAN 4015596151919
Area of application
Window technology
Area of application (specified)
Lift&Slide&Tilt, lift slide
Application system
GU-934, GU-937, GU-954, GU-957
Product type
Turn handle
Description of finish
UC5 dark bronze
Gross weight
0.516 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
2 Variants found
6-24613-00-0-1 | Turn handle | Bag handle inside 953/956, EV 1
Part No.6-24613-00-0-1
EAN4015596151889
6-24613-00-0-7 | Turn handle | Bag handle inside 953/956, white
Part No.6-24613-00-0-7
EAN4015596419194
No content available
Attributes
Type name
DIRIGENT
Operation on inside/outside
Interior handle
Clearance screw connection
80 mm
Handle length
240 mm
Lock-in positions of detent
90 °
Width of rosette
33,5 mm
Design of rosette
Rectangle
Length of rosette
152 mm
Type of backplate
Rosette
Square follower
10 mm
Length of square spindle
80 mm
projecting pin length (range)
27 - 50 mm
