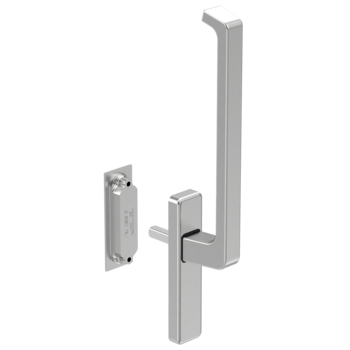

K-16859-00-0-8 | Hdle GU934/937 DIRIGENT w/oCB/flush pull
Part No.K-16859-00-0-8
EAN 4015596899590
Area of application
Window technology
Area of application (specified)
Lift&Slide&Tilt, lift slide
Application system
GU-954, GU-957, GU-934, GU-937
Product type
Turn handle
Description of finish
Ground stainless steel
Gross weight
0.955 KG
Packing unit
5 SE
Minimum ordering unit
1 SE
No content available
Attributes
Type name
DIRIGENT
Operation on inside/outside
Interior handle with exterior flush pull
Clearance screw connection
80 mm
Hole distance
69 mm
Handle length
240 mm
Lug
With lugs
Lock-in positions of detent
90 °
Width of rosette
33,5 mm
Design of rosette
Rectangle
Length of rosette
152 mm
Type of backplate
Rosette
Square follower
10 mm
Length of square spindle
80 mm
projecting pin length (range)
27 - 50 mm
