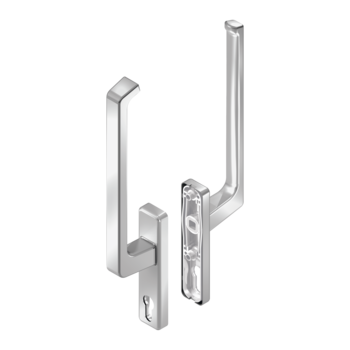

K-17400-00-0-1 | Handle GU934/7 DIRIGENT int/ext plugs/CB
Part No.K-17400-00-0-1
EAN 4015596042927
Area of application
Window technology
Area of application (specified)
lift slide
Application system
GU-934, GU-937
Product type
Turn handle
Description of finish
EV1 natural colour anodised
Gross weight
0.87 KG
Packing unit
5 SE
Minimum ordering unit
1 SE
3 Variants found
K-17400-00-0-0 | Turn handle | Handle GU-mZ DIRIGENT both sides, CB
Part No.K-17400-00-0-0
EAN4015596042910
K-17400-00-0-5 | Turn handle | Handle GU934/7 DIRIGENT int/ext plugs/CB
Part No.K-17400-00-0-5
EAN4015596042934
K-17400-00-0-7 | Turn handle | Handle GU934/7 DIRIGENT int/ext plugs/CB
Part No.K-17400-00-0-7
EAN4015596042941
No content available

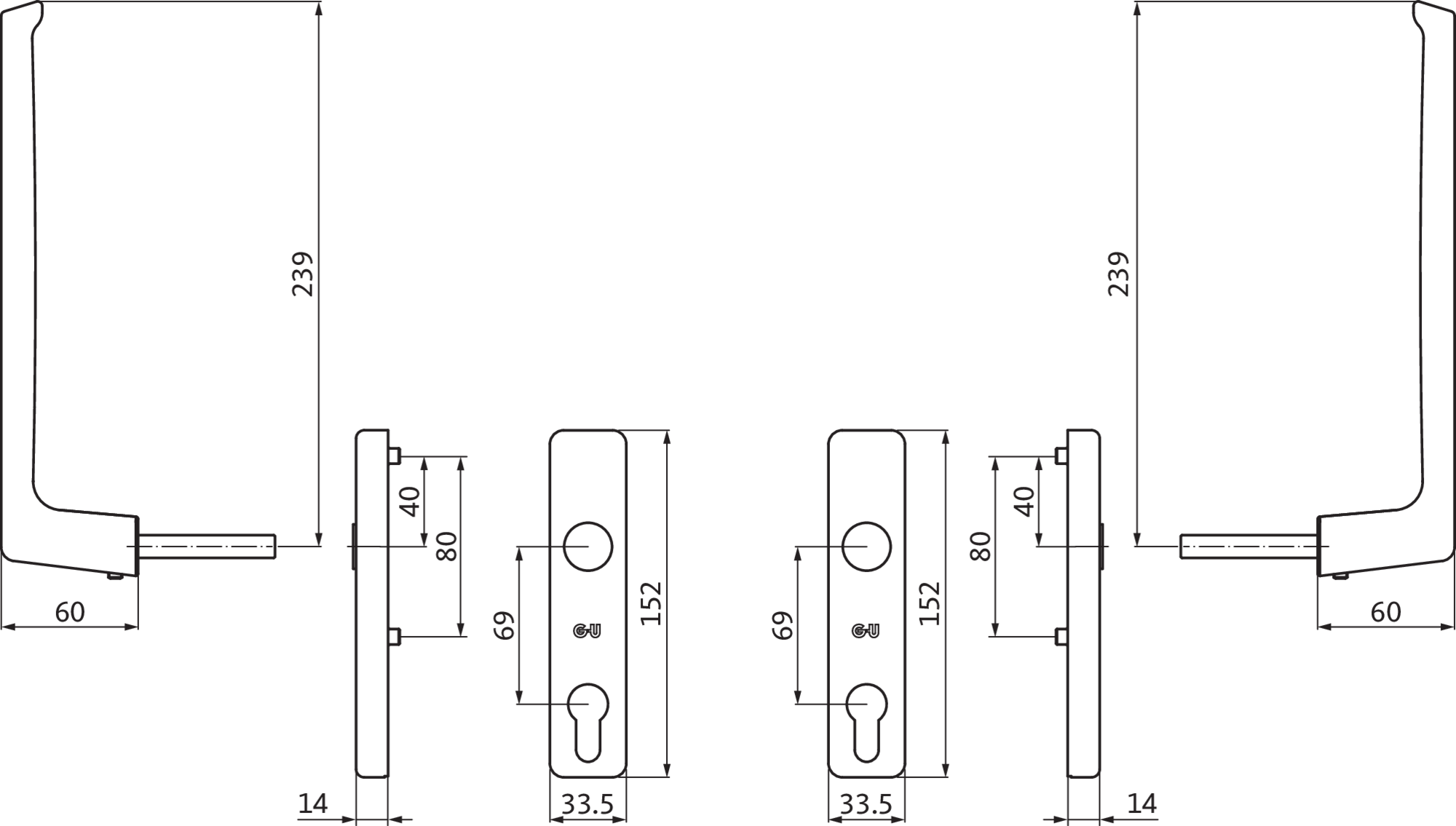

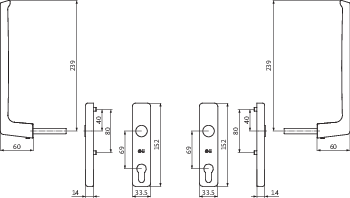

Attributes
Type name
DIRIGENT
Type of set
Turn handle set
Operation on inside/outside
Interior and exterior lever handle
Clearance screw connection
80 mm
Hole distance
69 mm
Handle length
240 mm
Lug
With lugs
Lock-in positions of detent
180 °
Width of rosette
33,5 mm
Design of rosette
Rectangle
Length of rosette
152 mm
Type of backplate
Rosette
Cylinder hole-type
Profile cylinder
Square follower
10 mm
Length of square spindle
150 mm
