U-71984-33-0-7_ma00 U-71984-33-0-X_na00
U-71984-33-0-7_ma00 U-71984-33-0-X_na00

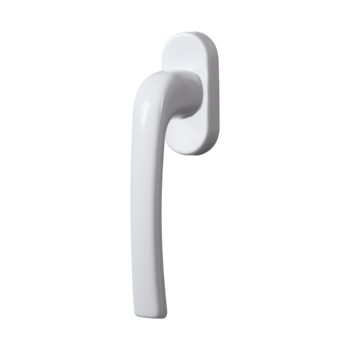

U-71984-38-0-7 | WINDOW HANDLE SET- SOPRANO

Part No.U-71984-38-0-7
EAN 4015596078438
Product description Technical data Downloads
Area of application
Window technology
Area of application (specified)
Tilt&Turn
Application system
JET
Product type
Turn handle
Gross weight
0.134 KG
Packing unit
20 EA
Minimum ordering unit
20 EA
Login

Please enter your login credentials to view prices or to order items

2 Variants found
U-71984-33-0-11_ma00
U-71984-38-0-11 | Turn handle | WINDOW HANDLE SET- SOPRANO
Part No.U-71984-38-0-11
EAN4015596078414
To the product
U-71984-33-0-X_na00
U-71984-38-0-5 | Turn handle | WINDOW HANDLE SET- SOPRANO
Part No.U-71984-38-0-5
EAN4015596078421
To the product
No content available

Attributes

Type name
Soprano
Operation on inside/outside
Interior handle
Clearance screw connection
43 mm
Handle length
125,5 mm
Lug
N10
Lock-in positions of detent
90 °
Width of rosette
28 mm
Design of rosette
Oval
Length of rosette
67,4 mm
Type of backplate
Rosette
Square follower
7 mm
Length of square spindle
75 mm
projecting square spindle
38 mm
