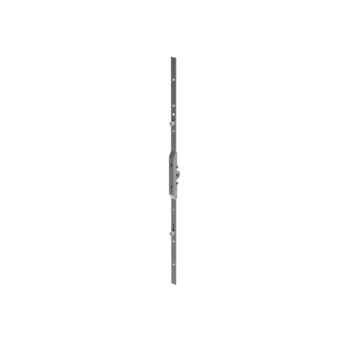

G-13510-08-0-1 | Gear 7,5
Part No.G-13510-08-0-1
EAN 4015596750860
No content available
Attributes
Sash rebate height
500 - 800 mm
Backset
7,5 mm
Number of leaves
einflügelig
Locking type
2 locking cams
Clearance behind backset
12,4 mm
Interior square of follower
7 mm
Handle position
variabel
Profile material
Aluminium, Holz, PVC
Type of faceplate
Flachstulp
Faceplate length
800 mm
Faceplate dimension (in mm)
16 x 2,25
Faceplate end
Square
Rotational range of handle
90°
Processing instructions
When shortening the hardware to its maximum length, it is important to ensure th...
Show more
When shortening the hardware to its maximum length, it is important to ensure that the distance from the end or start of the faceplate to the screw hole is observed.
Show less
Fixed handle height (dim HH)
400 mm
Furnishing
16 mm
